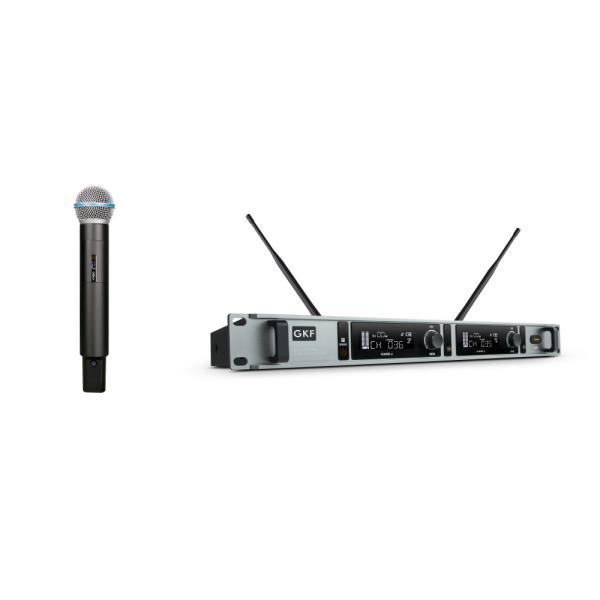

DJ Karaoke UHF Wireless Microphone Equipped With Both XLR Balanced And Ø6.3mm Unbalanced Outputs
Wireless Microphone Receiver Parameter
| Preset Channels | 32 preset channels |
| Operating Range | 90M typical ( in open space) |
| Oscillation | PLL synthesized |
| Sensitivity | 6dBμV, S/N>60dB at 25 deviation |
| Max. Deviation Range | ±45KHz |
| T.H.D. | ＜0.7% @ 1KHz |
| Frequency response | 45Hz～18KHz±1dB |
| Squelch | “PiloTone & NoiseLock” dual-squelch circuit |
| Power Supply | 100-240V/AC50/60 Hz, 10W |
| Weight | 2KG |
| Dimension | 482(W) X 454(H) X 186(D) (mm) |
| Output Connector | XLR balanced & 6.3φ phone jack unbalanced |
Wireless Microphone Transmitter Parameter (Handheld)
| Max. Deviation Range | ±45KHz |
| Input Connector | 4-pin mini-XLR connector |
| RF Power Output | 3～30mW ( country dependent ) |
| Battery | AA X 1 alkaline |
| Dimension | 72(H) X 68(W) X 21(D) (mm) |
| Weight | 71g ( w/o battery) |
Products Supply Scope
. Handheld system: 1* AM 300 receiver + 2* AH 300 handheld microphones
. 1 power supply unit
. 2 antennas
. 1 ¼” (6.3 mm) audio connecting cable
. 4 AA size batteries ( handheld system ) / 2 AA size batteries ( lavalier / headset system )
. Operating instructions.
Receiver Features
· Pilot tone squelch for eliminating RF interference when transmitter is turned off.
· Enhanced AF frequency range
· Built-in spectrum analyzer to scan and display interference frequency clearly.
· 600 selectable frequencies across 30MHz bandwidth.
· OLED display screen delivers a bright, clear viewing in day/night environments.
· Equipped with both XLR balanced and Ø6.3mm unbalanced outputs.
Application place
Provide personal audio, professional audio, engineering applications and other equipment and services, through innovative technology and high-quality products, realize people's dream of enjoying higher quality entertainment life, and become a trusted sound partner around you!
More Detail would be send to you by contacting our sale representatives
