Brand Name : GESTTON
Model Number : AM100
Certification : CE ROHS FCC
Place of Origin : Guangdong, China
MOQ : 10
Price : Negotiate
Payment Terms : T/T, Western Union
Supply Ability : 10000 sets/month
Delivery Time : 3-7 days
Packaging Details : Carton Box
Operating Range : 90M
Contain : 1 receiver + 2 microphone
Sensitivity : 6dBμV, S/N>60dB at 25 deviation
Band Width : 30MHz
S/N : >105dB
T.H.D. : <0.7% @ 1KHz

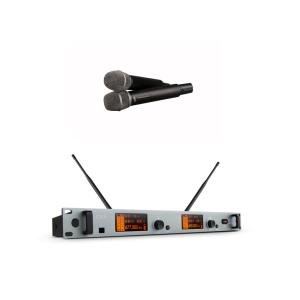

CE ROHS UHF Wireless Microphone Very easy and quick to use thanks to OLED display
Please feel free contact our sales representatives to get more product detail
Receiver Parameter
Frequency Stability | ±0.005%, Phase Lock Loop frequency control |
Carrier Frequency Range | UHF 510-937 MHz ( country dependent ) |
Preset Channels | 32 preset channels |
Operating Range | 90M typical ( in open space) |
Oscillation | PLL synthesized |
Sensitivity | 6dBμV, S/N>60dB at 25 deviation |
Band Width | 30MHz |
Max. Deviation Range | ±45KHz |
S/N | >105dB |
T.H.D. | <0.7% @ 1KHz |
Frequency response | 45Hz~18KHz±1dB |
Squelch | “PiloTone & NoiseLock” dual-squelch circuit |
Power Supply | 100-240V/AC50/60 Hz, 10W |
Weight | 2KG |
Dimension | 482(W) X 454(H) X 186(D) (mm) |
Output Connector | XLR balanced & 6.3φ phone jack unbalanced |
Transmitter Parameter (Handheld)
Harmonic radiation | <-63dBm |
Bandwidth | 120MHz |
Max. Deviation Range | ±45KHz |
Input Connector | 4-pin mini-XLR connector |
RF Power Output | 3~30mW ( country dependent ) |
Battery | AA X 1 alkaline |
Current Consumption | 60mA, typical |
Battery Current / Life | Min. 5 hours |
Dimension | 72(H) X 68(W) X 21(D) (mm) |
Weight | 71g ( w/o battery) |
Receiver Features
· 600 selectable frequencies across 30MHz bandwidth.
· OLED display screen delivers a bright, clear viewing in day/night environments.
· Rugged metal chassis with soft-touch controls.
· Advanced diversity technology maintains dependable wireless signal quality.
· Enhanced AF frequency range
Transmitter Features
· Equipped with 4 pin mini XLR connector.
· Infrared automatic transmitter sync.
· Rugged, ergonomically designed housing.
· 120MHz ultra-wide bandwidth.
Application
Suitable for
Large-scale performances ,small and medium-sized performances,
outdoor singing
speeches,
KTV boxes,
classrooms,
gymnasiums,
offices
government agencies
Products Supply Scope
. Handheld system: 1* AM 100 receiver + 2* AH 100 handheld microphones
. 1 power supply unit
. 2 antennas
. 1 ¼” (6.3 mm) audio connecting cable
. 4 AA size batteries ( handheld system ) / 2 AA size batteries ( lavalier / headset system )
. Operating instructions.
From professional audio, conference system to personal audio, gestton continues to expand its product line, which has fully covered the R & D, production and sales of products. Over the past 27 years, we have made continuous innovation in audio product technology, won high praise from many customers, and established cooperative relations with many well-known companies at home and abroad.
![]() |
