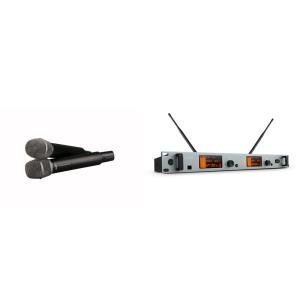

Studio UHF Wireless Live Recording Microphone Rugged metal chassis with soft-touch controls
Please feel free to contact sale representatives to get more detail~
Receiver Parameter
Main Frame Size EIA-Standard 19" 1U
Channels Dual Channel
Frequency Stability ±0.005%, Phase Lock Loop frequency control
Carrier Frequency Range UHF 510-937 MHz ( country dependent )
Preset Channels 32 preset channels
Operating Range 90M typical ( in open space)
Oscillation PLL synthesized
Sensitivity 6dBμV, S/N>60dB at 25 deviation
Band Width 30MHz
Max. Deviation Range ±45KHz
S/N ＞105dB
T.H.D. ＜0.7% @ 1KHz
Frequency response 45Hz～18KHz±1dB
Squelch “PiloTone & NoiseLock” dual-squelch circuit
Power Supply 100-240V/AC50/60 Hz, 10W
Weight 2KG
Dimension 482(W) X 454(H) X 186(D) (mm)
Output Connector XLR balanced & 6.3φ phone jack unbalanced
Transmitter Features
· Equipped with 4 pin mini XLR connector.
· Infrared automatic transmitter sync.
· Very easy and quick to use thanks to OLED display
· 1 x AA batteries – up to 5 hours continue use.
Receiver Features
· Enhanced AF frequency range
· Built-in spectrum analyzer to scan and display interference frequency clearly.
· Transmitter Sync.
· 600 selectable frequencies across 30MHz bandwidth.
· OLED display screen delivers a bright, clear viewing in day/night environments.
· Equipped with both XLR balanced and Ø6.3mm unbalanced outputs.
· Offers an exceptional value in both performance and price, for both working musicians and sound installers
Application
Suitable for Large-scale performances ,small and medium-sized performances, outdoor singing and speeches, KTV boxes, classrooms, gymnasiums, offices and government agencies
